We specialize in the manufacture of Active Optical Cables along with data Cables, Connectors, Adapters & Converters for the Audio, Video & Computer markets that gives our Clients an edge over the competition. By working with Customers of all levels on a daily basis, we have the ability to develop our products and services through the use of leading edge technology.

Our products cover virtually every communication application. They are the ultimate solution that will not only meet your current requirements, but your future ones too, with greater bandwidths, enhanced durability, and easier installation.

Technology moves fast and we keep up.

Do you want a successful import business?

We have  helped hundreds of businesses sourcing - procuring - importing and guaranteeing electronic products from China.

Do you want a better supplier - product - price - or shipping?

Then just email us here and we will guarantee you a better product - a better - price and faster shipping.

Super speed plus data transfer rates of up to 40 gbps

Connected devices are automatically recognized and optimally charged

For perfect, high-resolution ultra-hd cinema quality with 7680x4320 (8k) pixels

Double shielding for good reduction of electromagnetic interference

Slimline plug is especially ideal for mobile and flat devices or when space is limited

Flexible materials guarantee optimum kink protection and prevent cable breakage

High-quality materials and workmanship guarantee excellent transmission quality

As technologyand innovation marches forward, new kinds of devices, media formats, and large inexpensive storage are converging. They require significantly more bandwidth to maintain the interactive experience users have come to expect. In addition, user applications demand a higher performance connection between the PC and these increasingly sophisticated peripherals. Super Speed USB addresses this need by adding an even higher transfer rates to match these new usages and devices.

USB continues to be the answer to connectivity and charging for PCs, Consumer Electronics, Display and Mobile architectures. It is a fast, bidirectional, low-cost, dynamically attachable interface that is consistent with the requirements of the PC platforms of today and tomorrow.

What is E-marker and Why USB cables need it?

According to research data from the cable industry, the shipment of equipment carrying the Type-C interface is expected to reach 3 billion units by 2024. There are 80% laptops and desktop computers adopting type-c port, and there are 70% smartphones and tablets also using type-c interface.

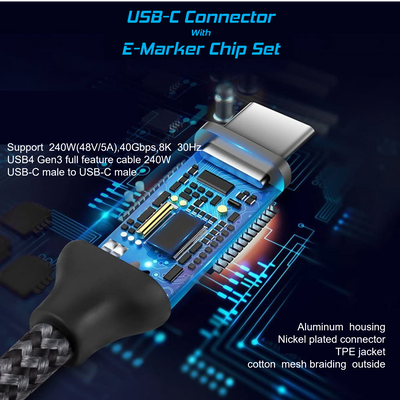

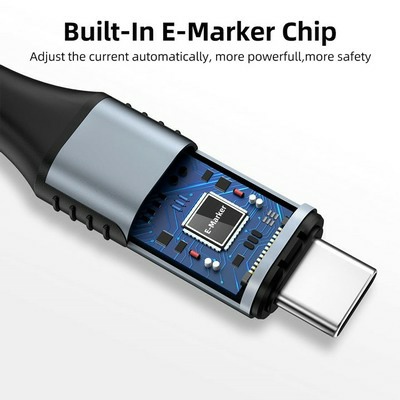

.An E-Marker (electronic marker) is a chip that is used in the latest USB connector iteration, USB Type-C, to communicate between power source and power sink devices. The chip is used to communicate with connected devices to ensure safe data and power delivery to and from the source and sink. The E-Marker provides the cable characteristics including the cable length, the maximum supported current and voltage, the type of USB signal, the vendor and product ID, any alternate mode support, and much more. An E-Marker is required on all USB Type-C cables that support 5 amps and/or exceed 60 watts of power carrying capability. USB Type-C cables that are expected to have data transfer rates above 480 Mbps, or High-speed USB 2.0, are also required to have an E-Marker chip embedded in the connectors of the cables. Applications that exceed 480 Mbps fall in the USB 3.1 realm, meaning any USB 3.1 cable is going to, with very minimal exceptions, be required, by the USB-IF community, to include an E-Marker in the Type-C cable.

All our cables are supplied FOB Ningbo China and does NOT include shipping

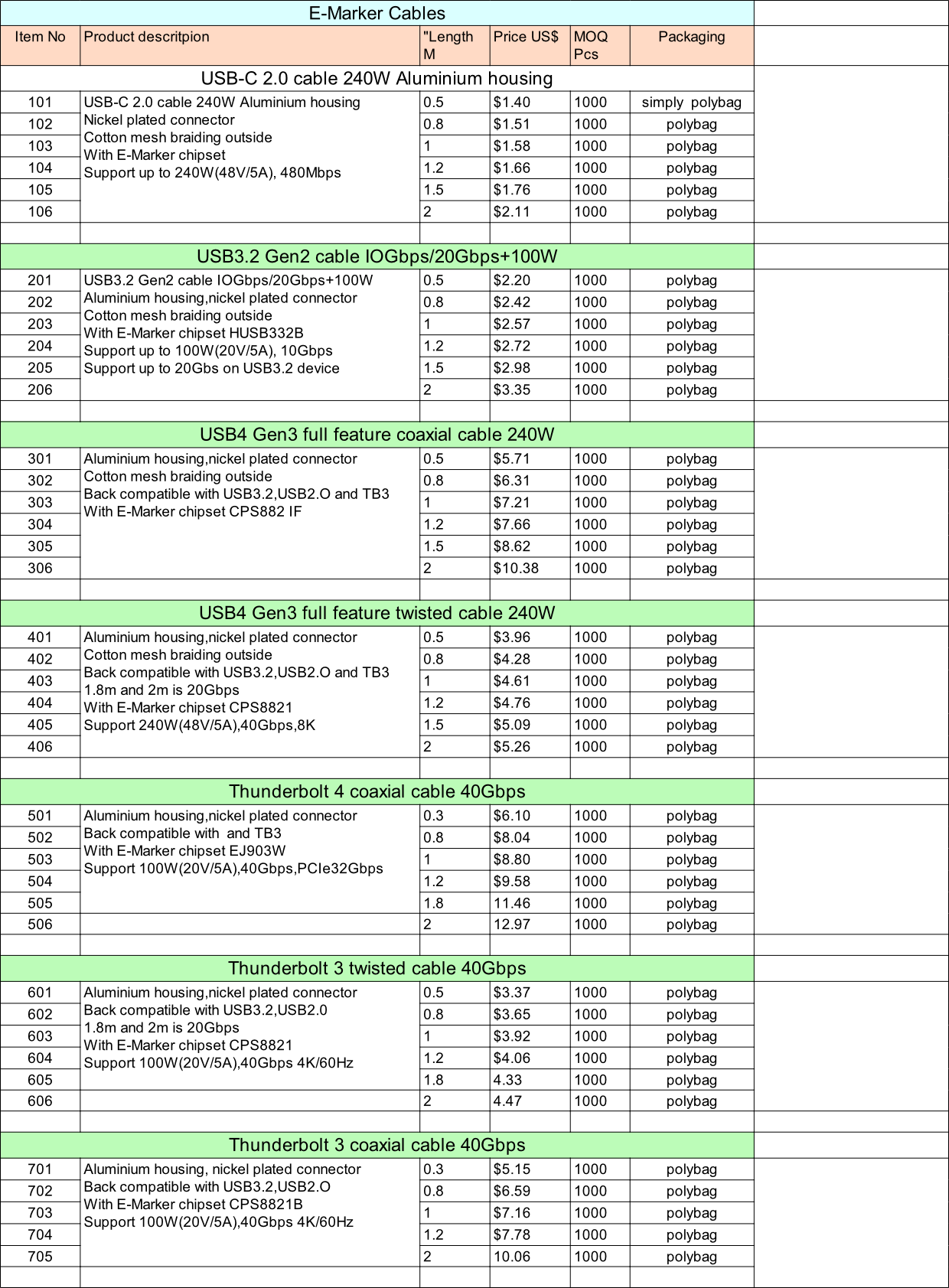

USB E-Marker Cables

USB-C Cable with E-Marker Chip
